Cleaning quartz crystals

Cleaning quartz crystals

Author: Stuart Schmitt

Content by courtesy of : Sweet Surrender Crystal Mine -  www.arcrystalmine.com
Reproduction of text and photos prohibited without permission of author.



Crystal cleaning yard

Cleaning crystal is a three step process. First the clay must be washed off the crystal. Second, the iron oxide film coating is removed in an oxalic acid bath. And last, the oxalic acid is washed off the crystal with fresh water. Sounds simple, but there are many ways to do each step depending on the type of crystal (points or clusters) and the quantity you have to clean.

Washing the clay off the crystal is not always as easy as it sounds, especially with clusters. Points are fairly easy to rinse with a garden hose. I do not recommend doing it in your kitchen sink because the clay can plug up your sink traps and plumbers are more expensive than your crystal. Most clusters have small cracks and crevices filled with clay. A pressure washer works best to flush out the clay. You can let the clusters dry in the sun for a couple days after washing to shrink the clay and pressure wash again. This process may have to be repeated several times. The cleaner the crystal the more effective the acid bath. Trapped clay prevents the oxalic acid from removing the iron film in that spot. The clay and iron oxide will also turn your acid green and eventually reduce its effectiveness. So do not rush the process and remove as much clay as possible before putting the crystal in acid.

Oxalic acid can be purchased in powder form at most drug stores, cleaning supply houses or rock shops. Prices will vary with quantity but expect to pay $2 to $4 per pound. Mix the oxalic acid with fresh water. The recommended mixture varies from one pound oxalic to two gallons of water up to one pound per five gallons of water. I use one pound per two gallons water. If you see funny green crystals growing in your solution you know you have added more oxalic than can dissolve in the water, you're saturated. This will not hurt anything, it just looks funny. Now you have to decide how fast you want to remove the iron oxide film off your crystal. If you are not in a hurry, you can let them soak in a plastic bucket in the sun for several days. If you are in a hurry you need to heat the acid. I do not recommend building a fire under your plastic bucket. An old crock pot works fine for the smaller crystals. Half of a fifty gallon drum will work for the bigger crystal. Set the drum on cement blocks and build a wood fire under it for a few hours. You can also use a propane burner to heat the acid. I do not recommend cooking your crystal on your kitchen stove and do not put oxalic acid in aluminum pans. The oxalic acid should be heated in a well ventilated area and wear rubber gloves if you stick your hands in the acid or OSHA might get you. And be sure to neutralize your acid with baking soda, lime, or ashes from your fireplace before disposing of it.

When you remove the crystal from the acid you should wash it thoroughly with fresh water. I use a pressure washer to help remove any clay residue. If you're not satisfied with the results, repeat steps one through three. I've had to clean small, needle point clusters as many as six times before I was satisfied with them. Some clusters have trapped clay that cannot be removed except with a hammer. You can get them clean this way but they do not look very nice when you're done.

Trick - The porous sandstone base of some clusters will turn green in dirty, hot oxalic acid. When the sandstone gets hot the pores expand and open allowing the acid to penetrate. When the sandstone cools the pores will close trapping the acid and turning the sandstone green. One method of removing the green color is to re-heat the clusters in acid to open the pores, and while still warm, put them in warm soap water (dish washing soap works fine) to soak for several days in the sun. The soap water will neutralize the acid turning the sandstone base back to its normal color. It's best to use clean, fresh acid when cleaning clusters that have a sandstone base.

Another way to clean sandstone base clusters is to heat the clusters in clean water before putting them in the acid bath. This will open the pores an fill them with water. Then, when you heat the clusters in acid, the acid cannot penetrate the water filled sandstone. Soaking sandstone base clusters in cold (non-heated) acid for several days will also prevent most of the green problem.

For small crystal cleaning jobs you can use a product called "Iron Out". Iron Out is used to remove rust stains from sinks, bath tubs and toilets. Millard wrote, "Hello again, -- We had a lot of trouble finding oxalic acid in this part of the world, so we cleaned our crystals with a compound called "Iron Out" which is a bisulfate cleaner sold at Home Depot. It is normally used to remove iron stains from porcelain or water softeners, and is fairly cheap--about $3.90 for 18 oz. of powder. It was quick and did a very good job. We used about 3 TBS per cup of water and cleaned a few points at a time. Don't know how it compares to oxalic, but our finished points look good. One bottle did our bucket full."

My new crystal mine is producing beautiful crystal but it is coated in a very heavy iron and limonite. To clean it efficiently I've had to use muratic acid. Muratic acid is nasty and dangerous stuff so I would only recommend using it as a last resort....and obey all the safety precautions. I made a "crystal still" to heat the muratic acid in a plastic stock tank.

Crystal Still

The new crystal mine is producing some exceptional crystals but most are coated with a thick iron crust and limonite. The iron crust has protected the crystals from damage over the years but it is very difficult to remove. The most effective cleaning process requires heated muratic acid which is nasty stuff to use. To simplify the process I made what I call my "Crystal Still".

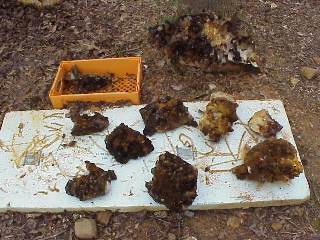

Crystal clusters coated with iron oxide.Crystal clusters coated with a thick crust of iron oxide.

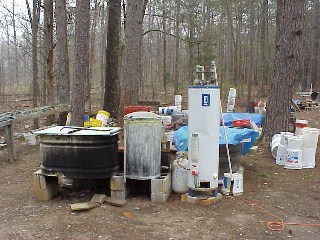

crystal cleaning yardMy crystal cleaning yard. My wife says the place is starting to look Arkie. I do need to clean things up a bit.

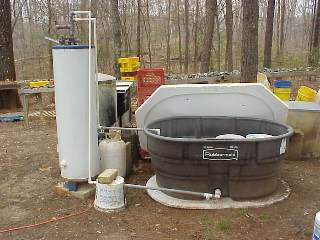

crystal cleaning stillMy crystal still: Propane 40 gallon hot water heater, 150 gallon Rubermaid stock tank, electric boiler pump. I heat the water to 160 degrees and circulate the water around five gallon buckets that contain the muratic acid.

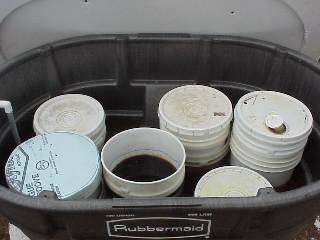

muratic acid bucketsI set holey buckets with crystal inside the muratic acid buckets. The next day I remove the crystal buckets and neutralize any remaining acid buy soaking them in a soda ash solution before washing the crystals.
green muratic residueMost of the crystals have to go through a muratic bath twice and then through a very hot oxalic bath to remove the green muratic residue before they are completely clean.
crystals are water clearIs it worth all the work? A high percentage of the crystals are water clear (McEarl quality) with many double terminated and other very unique configurations. So far we're having fun...but time will tell if it is all worth it.

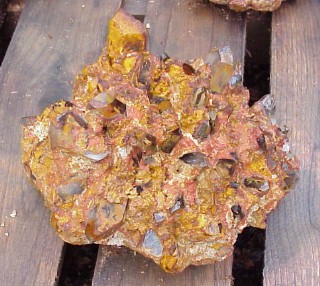

cluster before cleaning
16 pound cluster before cleaning

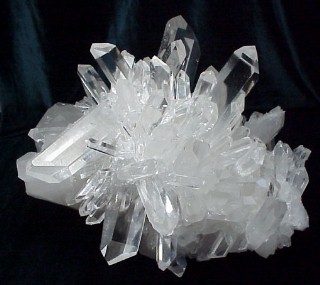

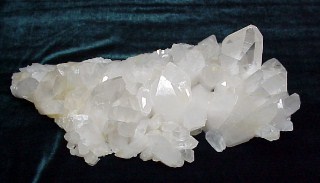

cluster after cleaning
16 pound cluster after cleaning

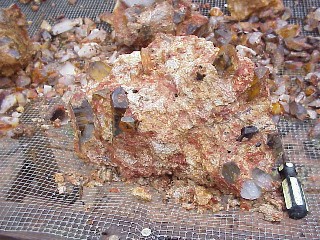

cluster before cleaning
10 pound cluster before cleaning

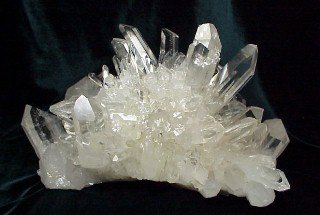

cluster after cleaning
10 pound cluster after cleaning
